High Voltage Power Supplies

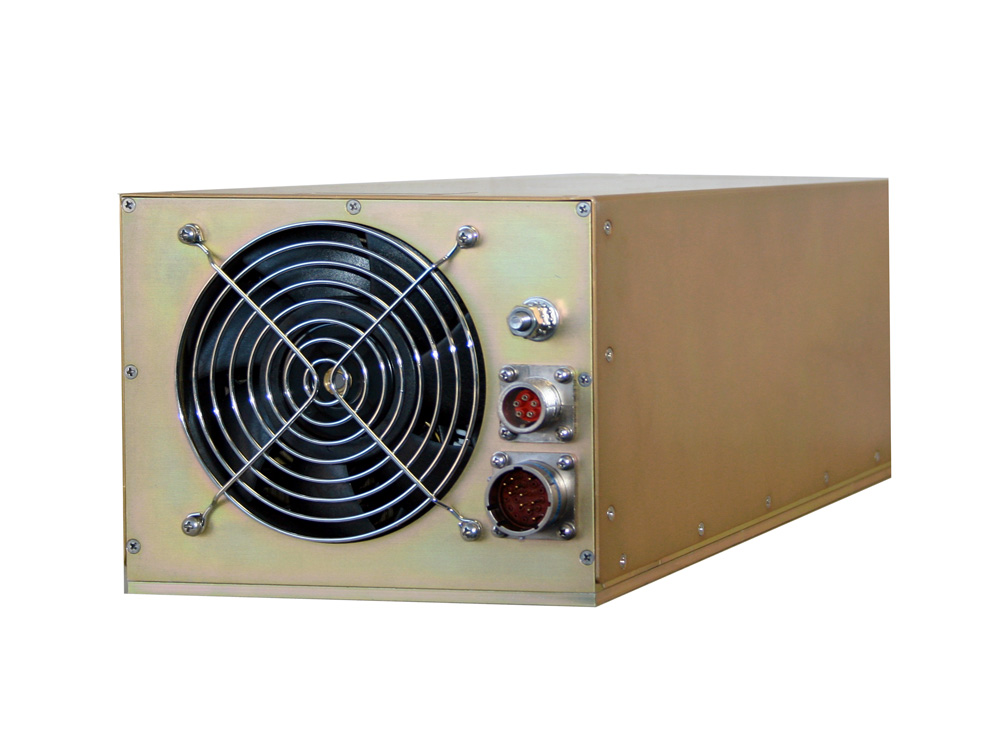

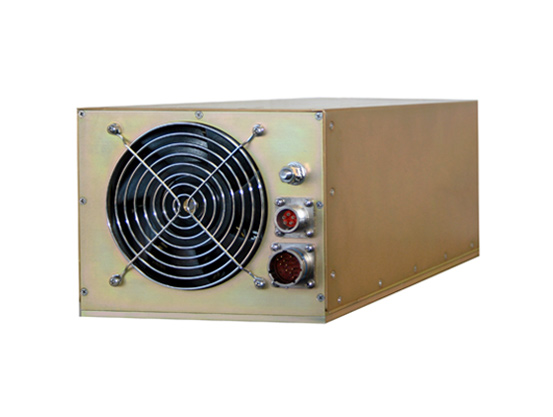

2kV, 2.5kW Power Supply

The POL2000WAB is specifically designed to meet high altitude airborne applications greater than 20,000. Polarity offers models suited for all major airborne platforms where size, weight, and performance are critical.

Outstanding thermal design ensures reliable operation to base plate temperatures of +60deg C. The POL2000W AB offers a design with industry leading reliability and a design that ensures rugged performance that is unmatched.

High efficiency modern conveter designs meet the demands of today’s complex systems and offer the ability to effectively power manage increasingly challenging requirements for airborne communication and radar systems.

Optional features are ultra low noise EMI/EMC, pulse droop compensation, ultra low pulse to pulse distortion, and a smaller lighter enclosure. Higher output power can be provided through optional liquid cooling. The communication protocol can be either serial RS485 or discrete control.

Specifications:

  • Input Voltage: 400Hz, 115/200VAC 3 Phase
  • Output Voltage: 2kV @ 1.2 A CW
  • Serial Interface: RS485
  • Operating Temperature: -40C to +70C
  • Storage Temperature, Non-operating: -62C to +150C
  • Altitude: 20,000 ft
  • Vibration: per MIL-STD-810A
  • Shock: MIL-STD-202C
  • Humidity: MIL-STD-810A
  • Size: 15″ x 6″ x 6″
  • Weight: 32lbs
2kV, 2.5kW Power Supply
2kV Shipboard Power Supply
