300 Watt 2-20Ghz SSPA

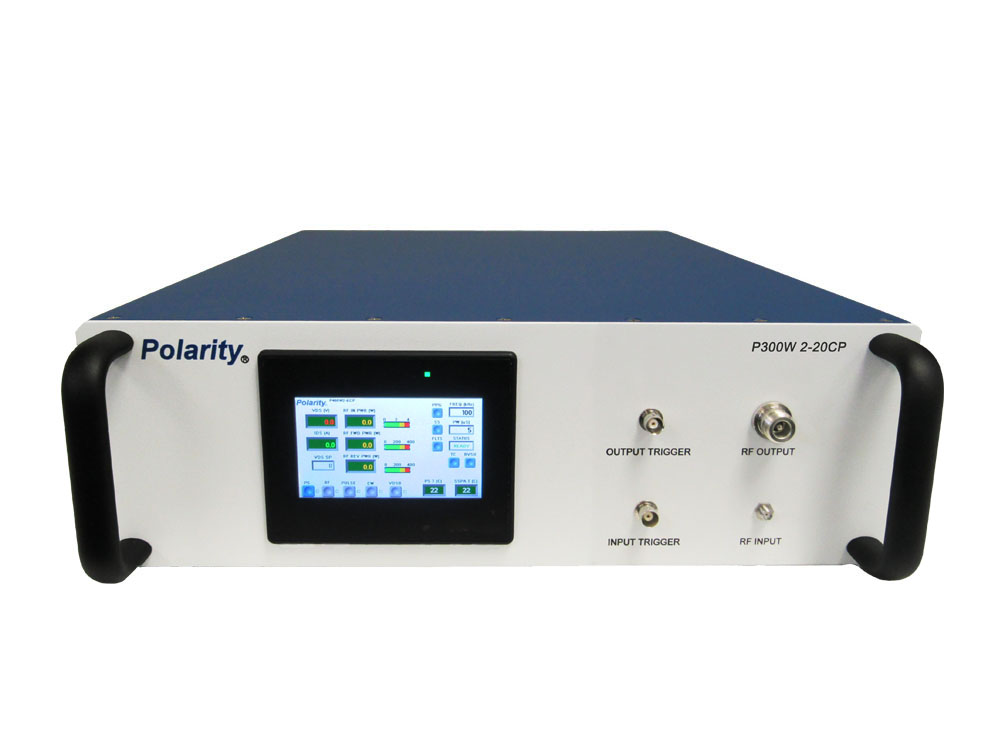

The P300W2-20CP SSPA is a high power, broadband, solid state power amplifier housed in an EIA compatible 3U height rack mountable chassis. The amplifier incorporates a wide input range AC – DC power supply, fan–forced convective thermal management, and an internal driver amplifier. The amplifier is appropriate for high–power wide–band testing, communications, radar, or any application requiring capability for simultaneous power amplification of signals across the 2.0 – 20.0 GHz spectrum.

The P300W2-20CP incorporates high efficiency GaN MMICs, spatially combined in a compact structure to achieve robust, high performance power amplification across the 2.0 – 20.0 GHz frequency range.

Product Features
• 2.0 – 20.0 GHz
• 300 Watts saturated power, 2 Spatiums power combined
• 62 dB small signal gain
• 54 dB nominal power gain
• 208-250 VAC 47-63 Hz AC input
• Forced air cooling
• Enclosure options: rack mount and waveguide outoutput
• Interfaces: RS485 and Ethernet
• Touch screen user interface

Applications
• Radar
• EW
• Communications
• Test & Measurement
• EMI Testing
